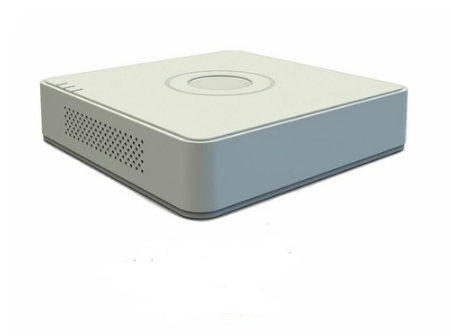

Hikvision DS-7116HQHI-K1 DVR

Description Hikvision DS-7116HQHI-K1 DVR   Key Feature H.265 Pro /H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 6/12/24-ch IP camera inputs (up to 6 MP) Max. 800 m for 1080p and 1200 m for 720p HDTVI signal Up to 6 TB capacity per HDD Compression and Recording H.265 Pro can improve encoding efficiency and reduce the data storage cost Full channel recording at up to 4 MP lite resolution Storage and Playback Smart search for efficient playback Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable   Specification Video/Audio Input Audio Input: 1-ch Video Compression: H.265 Pro /H.265 Pro/H.265/H.264 /H.264 Analog and HD-TVI video input: 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection Supported camera types: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 support CVBS input Video Input Interface: BNC (1.0 Vp-p, 75Ω) Audio Compression: G.711u Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ) Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)   Video/Audio Output HDMI/VGA Output: 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz Recording resolution: When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF Frame Rate: Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Video Bit Rate: 32 Kbps-6 Mbps Stream Type: Video/Video&Audio Audio Output: 1-ch RCA(Linear, 1kΩ) Audio Bit Rate: 64kbps Dual Stream: Support Synchronous Playback: 16-ch   Network management Remote connections: 128 Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF   Hard Disk Driver Interface Type: 1 SATA Interface Capacity: Up to 6 TB capacity for each disk   External Interface Network Interface: 1; 10M / 100M self-adaptive Ethernet interface USB Interface: 2 USB 2.0 Interfaces   General Power Supply: 12V DC Consumption: ≤ 15 W(without hard disks) Working Temperature: -10 oC ~ 55 oC (14 oF ~ 131 oF) Working Humidity: 10% ~ 90% Chassis: Mini 1U chassis Dimensions: 285 × 210 × 45 mm (11.2× 8.3 × 1.8 inch) Weight: ≤ 1 kg (2.2 lb)
