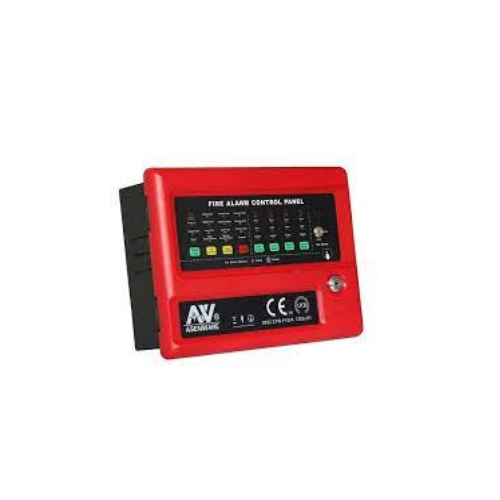

2 Zone Fire Alarm Control Panel AW-CFP2166-2 Asenware

2 Zone Fire Alarm Control Panel AW-CFP2166-2 Asenware 2 Zone Fire Alarm Control Panel AW-CFP2166-2 Asenware series conventional fire alarm panel is designed based on EN54 part 2＆4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications. Asenware 2 Zone Fire Alarm Control Panel has 2 level control mode by a lock, fire and fault signal output, optical GSM module for fire alarm by SMS, 2 general sounders output, battery low protection function, silence button to stop buzzer and sounders, each zone can be disable by a button, battery not included. AW-CFP2166-4 is a typical one zone fire alarm control panel which is designed based on EN54 part 2 & 4 standard. It is the heart of the fire automatic alarm system, which can realize centralized control, can supply power to the detectors, manual call point, bell and more. One zone of the panel can match with 20 pieces fire alarm system accessories. Asenware 2 Zone Fire Alarm Control Panel fire alarm system wire drawing is for reference. Fire alarm control panels are designed to fulfill the requirements of EN54 parts 2 & 4 as well as being easy to install, operate and maintain. Being of modular construction Asenware 2 Zone Fire Alarm Control Panel specifications ITEM 1Zone panel 2Zone panel 4-16 Zone panel 4-32 Zone panel Photo Model No. AW-CFP2166-01 AW-CFP2166-02 AW-CFP2166-04-16 AW-CFP2166-04-32 Power specification Mains supply voltage 110VAC or 240VAC Internal power supply 27.2VDC Total output current limited 500mA @ 240VAC 500mA @ 240VAC 3A @ 240VAC 3A @ 240VAC Main supply monitor for fault Yes Battery protection for low voltage Yes Batteries (default configuration) 12V2AH*2 Detector circuit specification Number of circuit 1 2 4-16 4-32 Line fault monitor for open circuit Yes Line fault monitor for short circuit Yes Line fault monitor for detector removal Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor End of Line device 6.8k Ω , 5% tolerance, 0.25W (colour code-blue, grey, red, gold) Detector continuity diodes Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) Call point resistor value 470 to 680 Ω , 0.225 or 0.5 watt Maximum number of smoke/heat detectors per zone 20 (based on a total detector current of 2mA, each detector consuming 100μ A). Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. Maximum number of manual call points per zone No limit Sounder circuit specification Number of general circuits 2 End of line resistor value 6.8k Ω , 5% tolerance, 0.25W (colour code-blue, grey, red, gold) Line fault monitor for open circuit Yes Line fault monitor for short circuit Yes Outputs fused AT 400mA Maximum number of bells @ 20mA of each sounder output 20 Fuses Battery fuse 1.5A F 20mm Sounder outputs 500mA F 20mm Fire and fault output Output type NC and NO relay Maximum current 100mA Connection block Largest acceptable conductor size 2.5mm 2 Smallest acceptable conductor size 0.75mm 2 Size and weight Dimensions(mm) 272*200*70mm 320*231*90mm 395X502X124 362X565X124 Weight (without batteries) 4kg 5kg 7kg 8kg Weight (with batteries) 5.8kg 6.8kg 9.6kg 12.5kg
